CPA – Fully Packaged Control Panel
Control Panels
The Caloritech™ CPA Fully Packaged Control Panel is suitable for use in a variety of electric heater installations – please consult with your Caloritech™ rep for details.
CPB – Basic Control Panel
Control Panels
The Caloritech™ CPB Basic Control Panel is used to interface with electric heaters that have remotely located thermostats, limit controls, percentage timers or other control components.
Please note that this model does not include a disconnect switch.

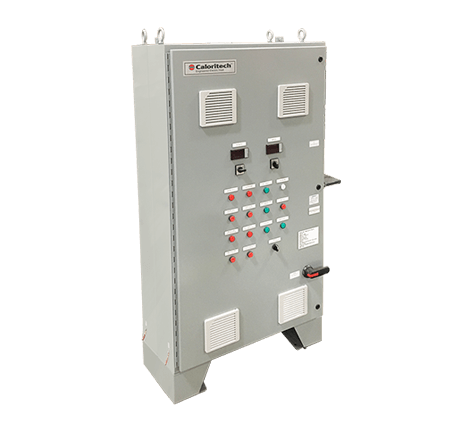

CPS – Control Panel (Contactor Stages)
Control Panels
The Caloritech™ CPS Control Panel (Contactor Stages) is ideal in scenarios where more than two levels of staging are required.
The CPS series includes a modulating temperature control driving a step control, which in turn brings on a number of contactor stages. Time delay between steps is adjustable to match the system dynamics. The high limit is a 543 manual reset, with thermocouple for -20°C to 1100°C (-4°F to 2012°F) range.
CPXD – Control Panel for XDF Duct Heater
Accessories
The Caloritech™ CPXD Control Panel is normally supplied with the XDF Explosion-Proof Duct Heater. These control panels are available in two basic types – type 4 moisture-resistant or explosion proof, and with four different control packages (see Catalog for details).
All CPXD control panels are supplied with magnetic contactor, HRC fusing, fused 120V control transformer, high limit controls, control circuit, ON/OFF switch, control ON light, high limit indicator light, high limit push-to-reset, terminals for connection of temperature controls and differential air pressure switch.
