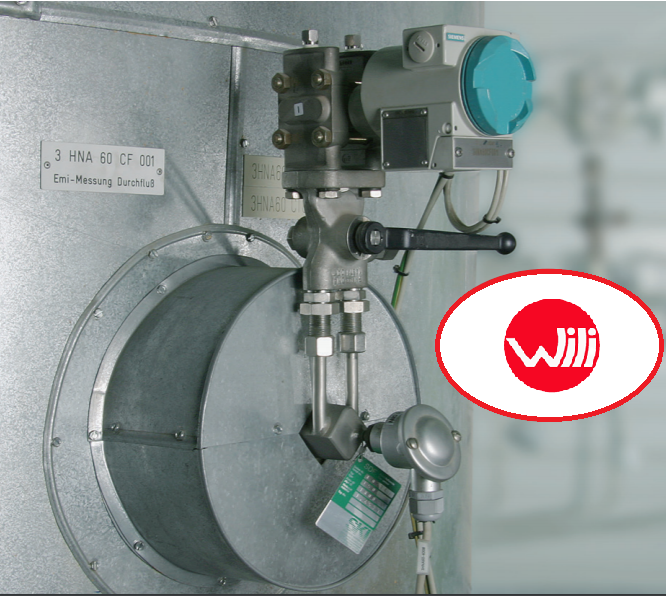

Flue Gas stack Flow Meter 4-20mA –Máy Đo Vận Tốc Khí Thải
flue gas stack flow meter 4-20mA , Đo liên tục tại chỗ về vận tốc, nhiệt độ và áp suất tuyệt đối của dòng khí trong đường ống
ÁP DỤNG
Việc sử dụng nguyên tắc đo áp suất động và PT100 đảm bảo một thiết bị dễ thiết kế và vận hành cũng như giám sát thời gian thực của các thông số đo lường.
Bộ phận điều hành và hiển thị được tích hợp trong vỏ bảo vệ thời tiết. Trên màn hình chất lượng cao tất cả các giá trị đo, thông tin trạng thái và thông số được hiển thị.
Tùy chọn, áp suất tuyệt đối khi đo điểm có thể được đo liên tục bằng một điểm tuyệt đối máy phát áp suất.
LỢI ÍCH CỦA BẠN
• thiết bị nhỏ gọn bao gồm đầu dò và đơn vị vận hành → không có thiết bị vận hành riêng biệt cần thiết
• chẩn đoán cục bộ về trạng thái hệ thống bằng tích hợp
Hiển thị đồ họa
• hiển thị thời gian thực với sơ đồ đường
• đọc lưu lượng thể tích ở tham chiếu tiêu chuẩn điều kiện có thể
• dễ dàng lắp đặt
• yêu cầu bảo trì rất thấp
• đo áp suất tuyệt đối (tùy chọn)
ĐIỀU KIỆN TRÊN TRANG WEB
• nhiệt độ môi trường: -20 … + 50 ° C
• vị trí không có bộ gõ
• phân phối bụi và khí thải đồng nhất
• vận tốc dòng chảy min. 3 m / s
• nơi lắp đặt với khu vực chạy vào / chạy ra tối thiểu.
Chiều dài gấp 5 lần / 2 lần đường kính ống dẫn
TECHNICAL DATA |
• volume flow (in operation / in standard condition dry): 0…3.200.000 m³/h • differential pressure: 0…5 mbar (0…10 mbar), measurement uncertainty <1% • temperature: 0…300 °C (0…800 °C), measurement uncertainty <1% • absolute pressure (optional): 800…1200 mbar • manual or automatic back-purgin |
Housing: probe with GRP weather protection casing, IP55;
440 mm x 640 mm x 1040 mm (w x h x d), approx. 30 kg
Probe: dynamic pressure probe with integrated PT100; immersion depth: 500 mm (standard)
Display / Operating: integrated operating unit with graphic display and 4 operating keys
Ambient temperature: -20…+50 °C
Relative humidity: no special sensitivity respective to atmospheric humidity
Media temperature: max. 280 °C (higher temperatures on request)
Flow velocity: from approx. 3 m/s
Measuring ranges: • velocity: 0…30 m/s (0…60 m/s)
Operational availability: after approx. 1 min
Analogue outputs: 3x 4…20 mA; selection of the following measurands: velocity, volume flow
(in operation / in standard condition dry), differential pressure, temperature and
optionally absolute pressure;
burden: max. 500 Ω
Digital outputs: status signals: max. 24 V DC at 0.1 A; failure, maintenance, limit value 1 and 2
Process connection: flange DN 80 PN 6
Power supply: 110/230 V AC, 50-60 Hz, 24 V DC, 5W
Optional: • readout of absolute pressure (measuring range: 800…1200 mbar)
• feeding of frost protection heating (230 V AC, 500 W)
Technical specification
Measured quantity: | Differential pressure (Velocity) Optional: Static Pressure |
Output signals: | Volume flow, standardized volume Flow Optional: Static Pressure, Temperature |
Gas: | Exhaust gas, flue gas, with dust/particles, water saturated |
Temperature range: | Standard: −50 … 450 °C, optional −180 .. 1100 °C |
Pressure range: | Standard: < 0,5 barg Higher pressure upon request |
Stack/Duct Diameter: | DN 100 … DN 10000 4″ – 300″ (also suited for rectangular ducts) |
Required straight inlet and outlet pipe runs: | Depending on system configuration |
Material of wetted parts: | Standard: 1.4404 (AISI 316L) Extended Standard: 1.4541 (AISI 321), 1.4571 (AISI 316Ti), Hastelloy C22 (alloy 22) Other materials upon request |
Error limits: | According to QAL1 requirements |
Measurement range: | 2 … 20 m/s (up to 2 … 60 m/s) |
Certification: | QAL1 (certificate number) 0000038500 MCERTS (certificate SIRA MC120218/00) Optional: ATEX and IECEx (for field instrumens) CE declaration of conformity |
