B100 – Thermocouple Well Assemblies
The Caloritech™ B100 Thermocouple Well Assemblies are used mostly in tank applications to provide a strong one piece device to sense liquid temperatures. The terminal enclosure can be used outdoors or in dusty, oily or damp environments. Optional enclosures are available for hazardous applications. Wells are constructed of steel or stainless for most applications. For highly corrosive liquids, check with the factory for custom bar stock well assemblies.
FEATURES
- Typically used in tank applications for process temperature sensing
- Constructed from stainless steel in most applications
- Can be used in outdoor or dusty, oily or damp environments

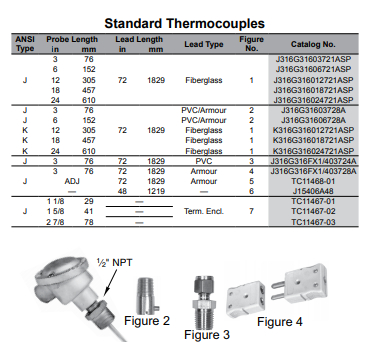

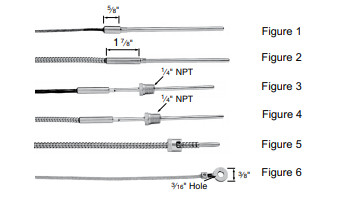

Standard Thermocouples
Thermocouples are sensing devices used with electronic
controls (such as Fenwal models 921, 550, & 543). Some
normally stocked types are shown below. Many other
configurations can be made to order. See Section D of the
Caloritech™ catalog for general information.

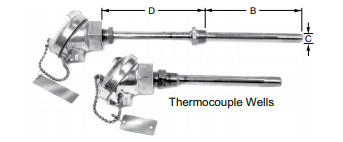

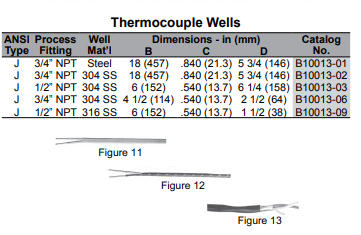

Thermocouple Well Assemblies
These assemblies are used mostly in tank applications
to provide a strong one piece device to sense liquid
temperatures. The terminal enclosure can be used
outdoors or in dusty, oily or damp environments. Optional
enclosures are available for hazardous applications. Wells
are constructed of steel or stainless for most applications.
For highly corrosive liquids, check with the factory for
custom bar stock well assemblies.
