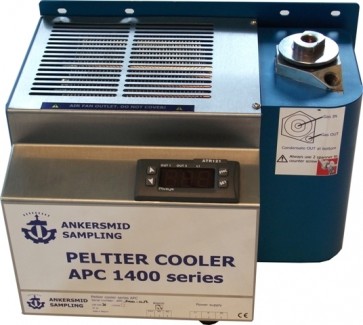

CEMS Gas Cooler
ANKERSMID Electrical cooler
APCW1430 Series
Application
Ankersmid Electrical Coolers are used to lower the dew point
of humid gas to avoid condensate entering into the gas analyser.
A good and stable gas dew point avoids cross-interference if the
analyser is sensitive to H2O.
Description
This unique microprocessor controlled Electrical Cooler has
been designed with two powerful Electrical elements and an
unique patented heat-pipe system. The dew-point is set at +4°C
but can be changed at any value between 1 and 15°C. The
condensate that is formed should be removed by a
peristaltic pump,automatic drain or collection vessel.
The heat exchanger is demountable and PFA®-coated.
The digital controlled cooler has many control and warning
features like programmable alarms, mA-output, digital inputs and
Modbus or RS485 communication.
The alarm status changes when the temperature deviates by
± 3°C from the set point.
Available for 230VAC and 115VAC power supply
