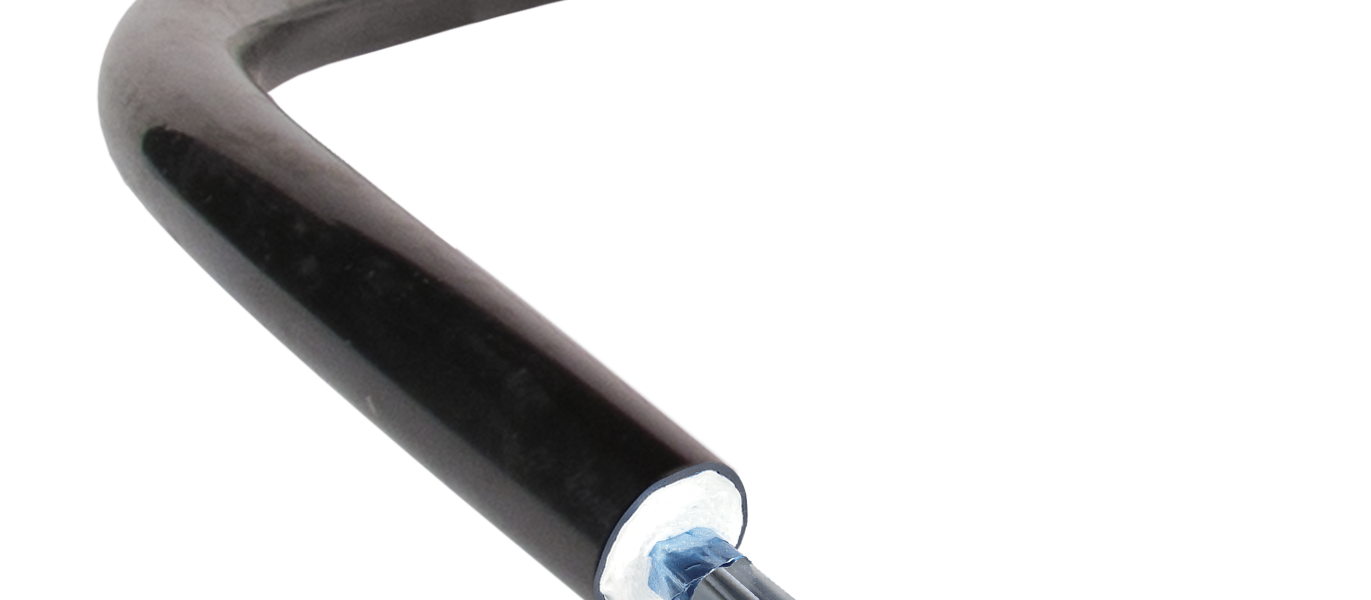

TubeTrace with MIQ (Electrically Heated Tubing Bundles)

TubeTrace, with series resistance MI heat tracing, is designed to maintain high temperatures or provide freeze protection where high temperature exposure is possible. MIQ withstands temperature exposures of 593°C (1,100°F). The seamless Alloy 825 sheath and construction of the heating element make MIQ an exceptionally durable heat tracing option. This has made MIQ the industry standard for high temperature heat tracing applications, and it is available in TubeTrace pre-insulated instrument tubing bundles.

FEATURES

High temperature maintenance
High temperature exposure
High watt density applications
Certified for use in ordinary (nonclassified) areas and in potentially explosive atmospheres

APPLICATION
TubeTrace,withseriesresistanceMIQheattracing,isaprefabricated heat tracing circuit designed to maintain freeze
protection or high temperatures from 5°C to 500°Cwhere
high temperature exposure is possible. MIQ withstands
temperature exposures of 593°C.
The seamless Alloy 825 sheath and construction of the
heating element make MIQ an exceptionally durable heat
tracing option. This has made MIQ the industry standard
for high temperature heat tracing applications.

CONSTRUCTION
1 Process tube(s)
2 MIQ mineral insulated electrical heat tracing
3 Heat reflective tape
4 Non-hygroscopic glass fiber insulation
5 Polymer outer jacket (ATP or TPU available)
