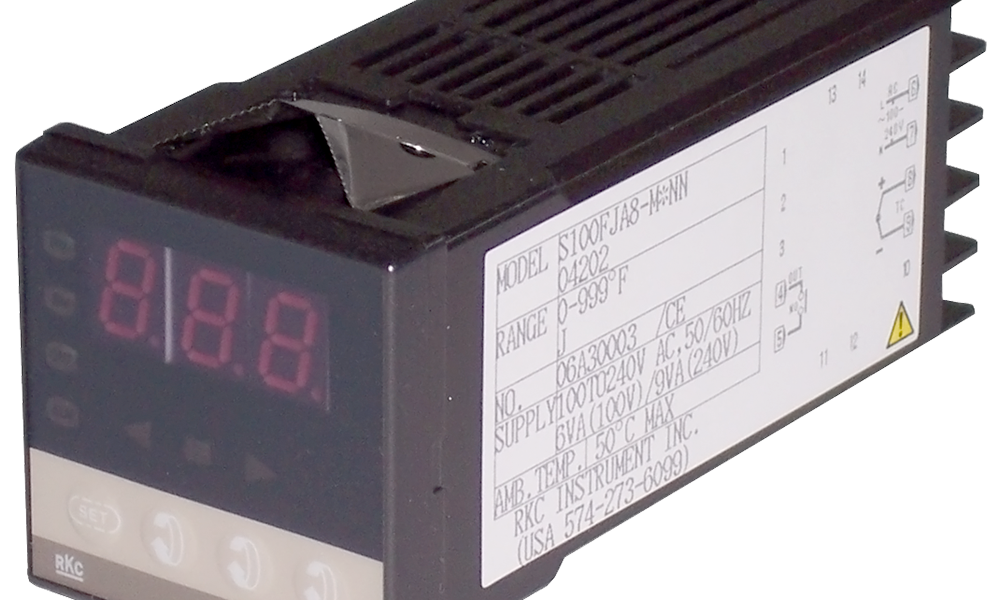

S100 Caloritech™ Electronic Indicating ControlsIndicating Control

Caloritech™ Electronic Indicating Controls come in 5 different series S100 Series The Caloritech™ S100 Electronic Indicating Control is a low cost, single digital display control that features either T/C or RTD input and either relay or SSR output. C100 Series The Caloritech™ C100 Electronic Indicating Control is a general purpose control with dual digital displays for both process and set point. It features either T/C or RTD input and either relay, SSR pulse, triac driver or 4-20 mA output. D100 Series The Caloritech™ D100 Electronic Indicating Control offers high end process features for applications where a 1/8 or 1/4 DIN control is not appropriate. It features either T/C or RTD input and either relay, SSR pulse or 4-20 mA output. CB100 Series The Caloritech™ CB100 Electronic Indicating Control is a high limit, FM approved control that features manual reset, T/C input and relay output. It is designed for use in conjunction with another process control. UT Series Caloritech™ UT Yokogawa Electronic Indicating Controls are available in 1/4 and 1/8 DIN sizes. Red LED displays show both process and set point. The UT can accept inputs from all thermocouples, RTDs, mV and mA. Outputs can be relay, pulse DC for solid state relays and 4 – 20 mA for step controls and SCRs. Most controls are field configurable to any input and output. Three models are available, please see the Catalog for further details on the corresponding feature sets for each model.

FEATURES

Standard DIN sizes
Digital display
Completely field configurable
Provides precise control

Series 100 Electronic Indicating Controls
The 100 series of 1/16 DIN sized controls are available in a number of models having a variety of features
to suit the particular application.

The S100 is the lowest cost single digital display model.
The C100 is a general purpose control with dual digital
displays for both process and set point.
The D100 offers high end process features for applications
where a 1/8 or 1/4 DIN control is not appropriate.
The CB100L is an indicating, manual reset, high limit, FM
approved control used in conjunction with another process
control. Table 1 shows the features for each model.
